HIGH SPEED EAGLEV7linear
Designed for dynamic performance, thermal stability, and process reliability under real-world manufacturing conditions
Fair: AMB
15.-19.9.2026 in Stuttgart
Completely reimagined
EAGLETec
inside
With the HIGH SPEED EAGLE V7linear, OPS-INGERSOLL is introducing a completely new generation of machines for high-precision 5-axis machining. The focus was on creating a machine that meets the demands of modern manufacturing processes. The result is a machining center that consistently combines dynamic performance, thermal stability, ease of use, and automatability.
Precise, compact, and user-friendly
Designed to meet the demands of modern manufacturing

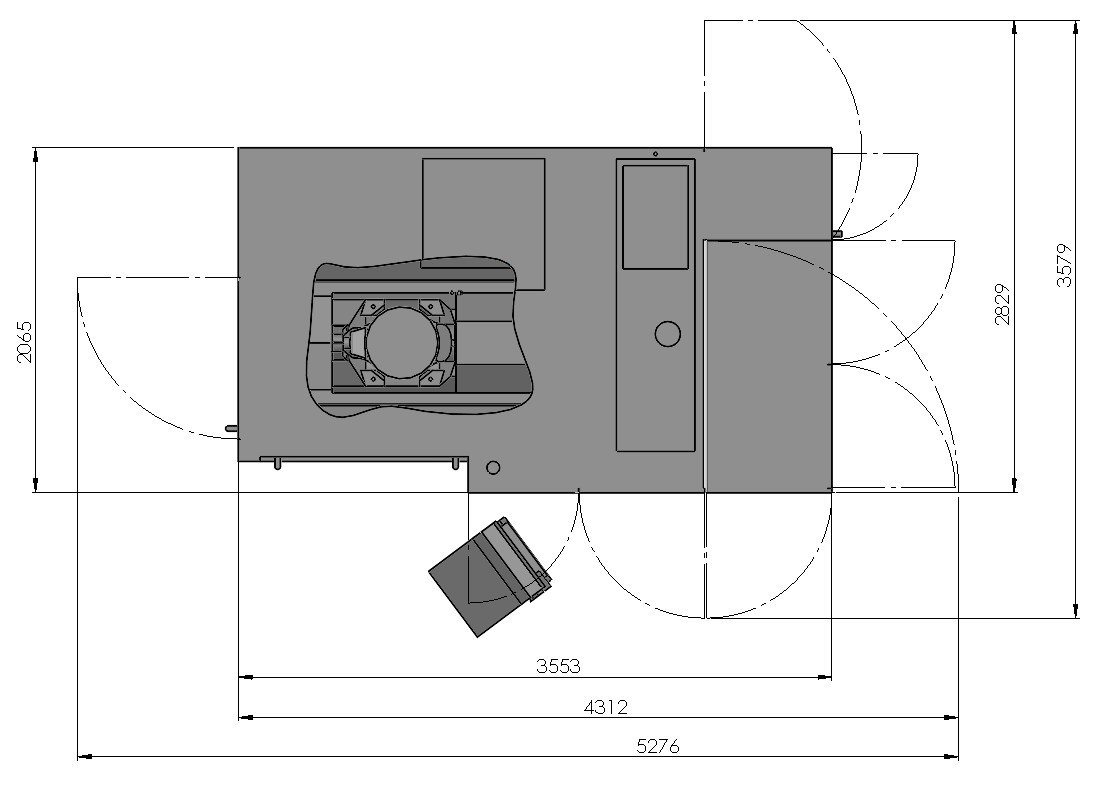

HIGH SPEED EAGLEV7linear Setup
The HIGH SPEED EAGLE V7linear combines modern direct-drive technology, thermally stable machine structures, and high-performance 5-axis kinematics into a comprehensive machine concept. Its technical specifications reflect its consistent focus on dynamics, precision, and reproducible machining results.
- End-to-End Machine Temperature Control
- IO-Link, remote maintenance, process monitoring
- HEIDENHAIN TNC7 24" touchscreen
max. 500 kg
max. 200 kg
Standard configuration
Technical data
Precision Thanks to Sophisticated Technology
The HIGH SPEED EAGLE V7linear combines numerous design and technological solutions into a cohesive machine concept. The result is stable processes, high productivity, and reproducible machining results.
Direct drives on all axes
- The V7linear consistently relies on direct drives on all axes. By eliminating mechanical transmission elements, there is neither backlash nor wear-related loss of accuracy. This enables high dynamics, precise positioning, and consistently reliable performance over the long term.
Comprehensive Temperature Management
- Temperature-induced displacement is one of the biggest factors affecting machining accuracy. The V7linear relies on continuous temperature control of thermally relevant components, thereby creating stable conditions for reproducible results—even during long runs.
CSC Spindle Technology
- CSC technology regulates the temperature of the spindle right where heat is generated. Active cooling of the rotor, bearings, shaft, and HSK interface reduces thermal expansion and ensures high process stability throughout the entire machining cycle.
Compact 5-axis kinematics
- The high-performance rotary/tilting unit enables the machining of complex workpieces in a single setup. This reduces setup time, increases accuracy, and creates optimal conditions for demanding 5-axis simultaneous machining.
Connected Manufacturing
- With Heidenhain TNC7, IO-Link, and integrated digitization functions, the V7linear is ready for modern manufacturing environments. Relevant process data is available in real time, supporting transparent and efficient production processes.
Ready for Automated Manufacturing
The HIGH SPEED EAGLEV7linear was designed from the outset for use in automated production environments. When combined with automation solutions from OPS-INGERSOLL, it creates flexible manufacturing systems for unmanned shifts, short setup times, and maximum machine utilization. This lays the foundation for cost-effective and future-proof manufacturing processes.
