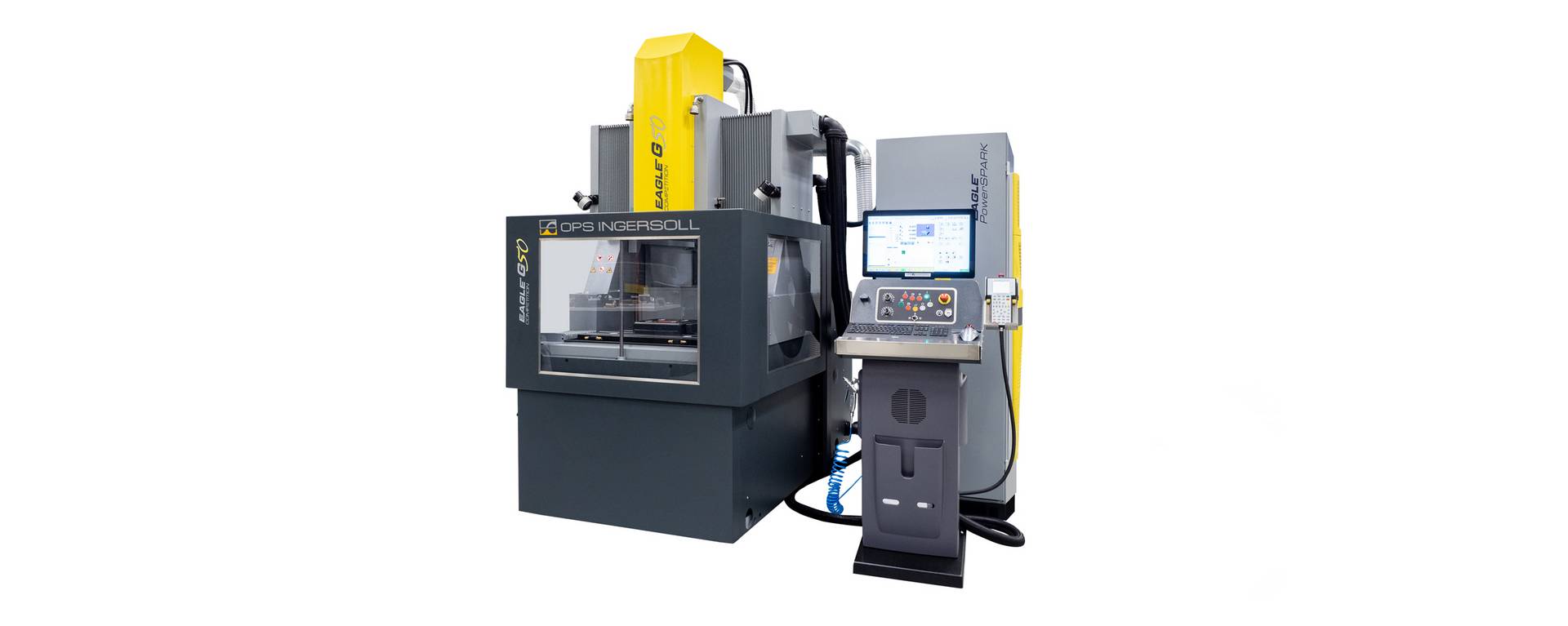

EAGLE G50
Competition
EAGLE-power with newest control technology
Competition
EAGLE-power with newest control technology
Consistently developing the good
EAGLETec
inside
Our successful portal design is the basis for maximum dynamics and demanding requirements with the groundbreaking EAGLE PowerSPARK technology. With the EAGLE G50 Competition, it is now possible to achieve the finest, even matt glossy surfaces with graphite that were previously unimaginable.

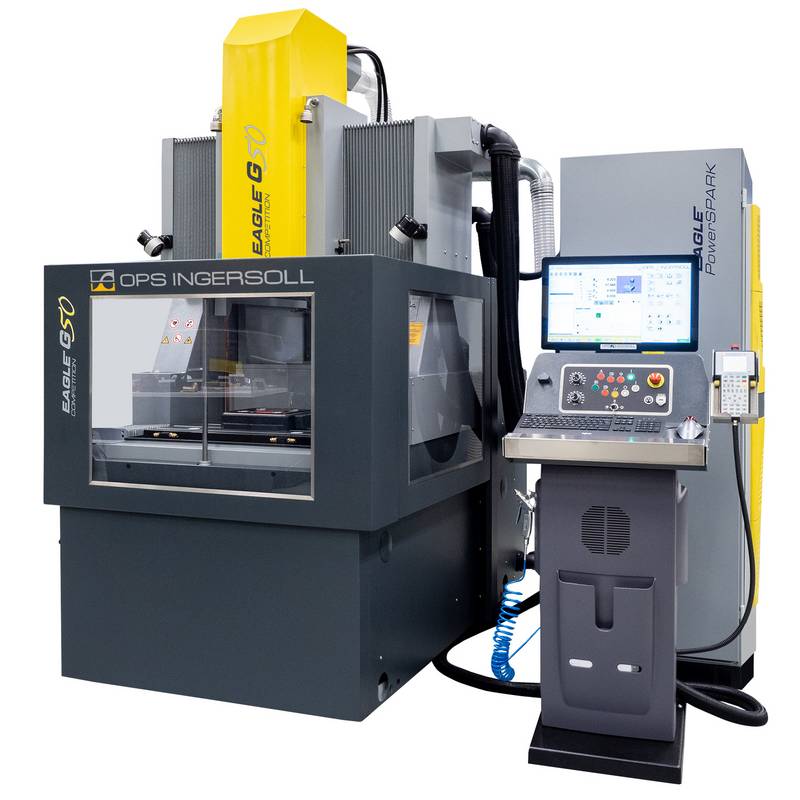

Setup EAGLE G50 Competition
In combination with the lowerable tank, the ergonomical working height, the integrated C-axis and the electrode changer, the EAGLE G50 Competition offers you functional, excellent quality and a high level of operating comfort.
- Active temperature control for high thermal stability
- New control technology EAGLE PowerSPARK
- Best ratio between machine size and travel movement
C = 360°
max. 1.000 kg
Standard configuration
Technical data
programmable/automatic
Configuration
In addition to numerous precision features, our EAGLE G-Line machines can be perfectly equipped to your specific application with optional extensions.
Precision features
- ADC – Active Dielectric Cooling
- PGC – Position- & Geometric Compensation
- TC – Temperature Compensation
- IPR – Increase Precision & Repeatability
Precision features
- EAGLE PowerSPARK Generator 60 amps
- EAGLE PowerSPARK fine finish package (OKL < VDI12)
- EAGLE PowerJUMP with 18m/min intrval speed in the Z-axis
- Linear measuring system in all axes
- ECOTEC energy saving function
- Precision package with head cooling, spindle nut cooling and work tank temperature control
- Telescopic exhaust unit at the working head
- C-axis
- Electrode changer 20 positions
- Pressure flushing programmable, suction connection manually
- Filter unit, 16m2 paper filter
- CO2 fire-extinguishing system
Further options (selection)
- Generator 110 amps
- Technology package for fine finish and carbide machining
- Special software options for e.g. eroding without dielectric coverage (BA4)
- Electrode and workpiece clamping systems from all well-known manufacturers
- 30 position electrode changer
- Oil mist suction unit
Automation extensions
- MultiChange light/perfomance for the connection of up to 2 machines
- Preparation (interfaces) for third-party automation systems, e.g. EROWA, INDUNORM
- Jobmanagementsoftware, e.g. EVOMECS, CERTA, SOFLEX
With automation into the next generation of precision machining
Our future-oriented automation solutions of the MultiChange handling systems ensure even greater efficiency, thanks to fully automatic and extremely time-saving changing systems for electrodes and workpiece pallets. Another advantage: Our MultiChange systems are able to handle the technology combination of high speed milling and spark erosion, even with several machines.
